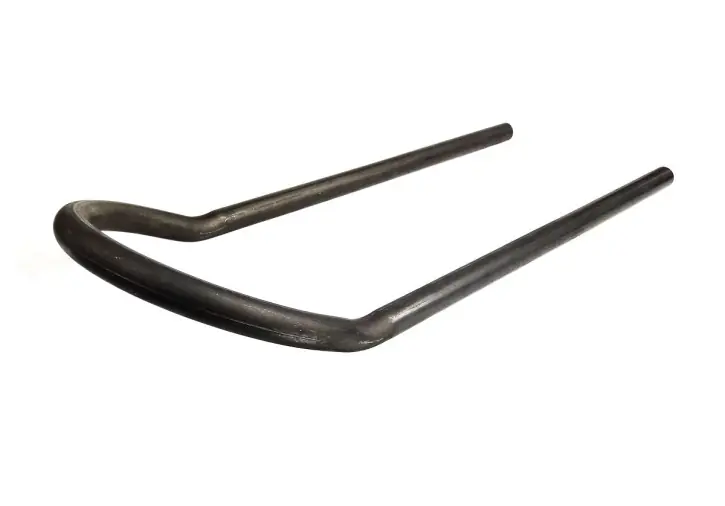

Preis Gesenkt Frame, Loop, Ø22mm (7/8 „) / 200mm, universal

Long rear bar made of brushed quality steel.
This loop has a 180 degree arc and a 30 degree uptilted end.

Ideal for scrambler conversions and motorcycles whose rear is slightly upwards.

The bracket is universally applicable to all motorcycle frames with the same dimensions. Please compare
Check the dimensions before buying and pay particular attention to the pipe pitch and outer diameter of the pipes.
The attachment of a frame bracket and / or the flexing of the original frame require a TÜV inspection.
The screwing on an unchanged original frame, however, not.

Dimensions
– Overall length: approx. 540 mm
– Ø inner (pipe): approx. 18 mm
– Ø outer (pipe): approx. 22 mm
– Pipe spacing (from middle of pipe to middle of pipe): approx. 200 mm
– Material thickness: approx. 2 mm
– Length up to the bend: approx. 400 mm
