Must-Have 5 3/4″ chromed headlight with bottom mount and E-mark. Inclusive H4 12V 60/55W bulb and parking light

• Dock66 Bates Style Headlight

• Maximum diameter (headlight ring): 16 cm, depth: 11 cm
• Bottom mount: center-mounted bracket underneath
• Chrome finish
• Metal housing
• Headlight insert 5 3/4″, visible area 13.6 cm in diameter
• H4 insert, 60/55W
• Fits many motorcycle types
• E-marked: street-legal without registration

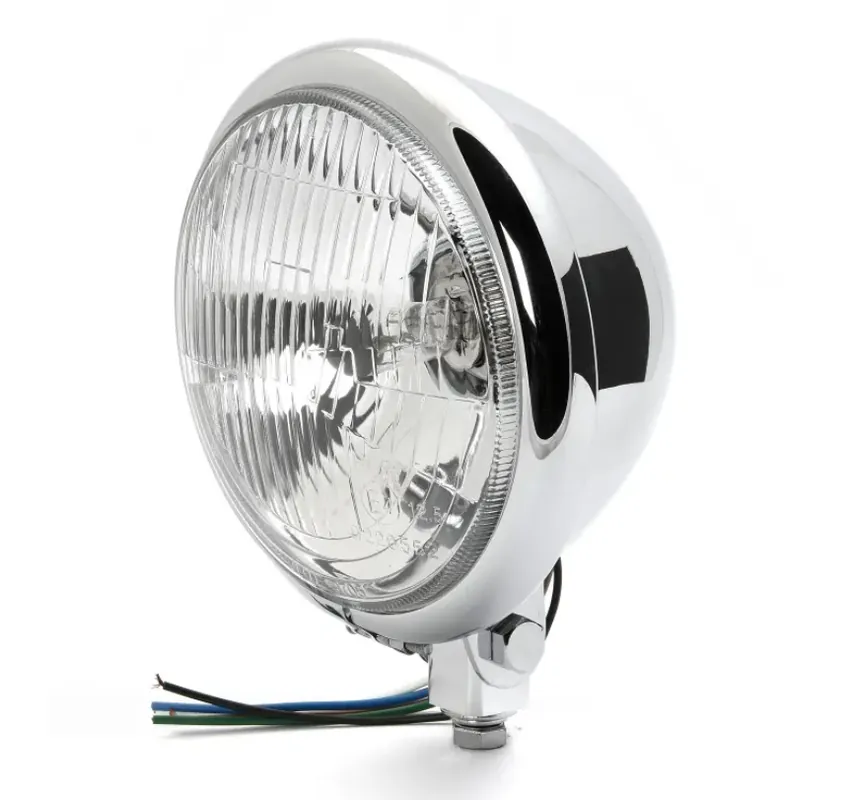

The legendary chrome 5 3/4″ Bates Style Bottom Mount headlight in excellent quality. The Bates Style headlight in chrome is considered the classic chopper headlight of the 1960s. It’s also perfect for Old School builds such as Bobbers, Café Racers, and Scramblers—ideal for all types of custom projects.

The classic headlight comes with an H4 bulb (12V 60/55W) and a position light insert with bulb. Equipped with a bottom-mount bracket and wiring harness. E-mark stamped in the glass!
Depth approx. 11 cm, maximum diameter (headlight ring) 16 cm.
The base features a 3/8″-24 UNF thread. The included bolt for mounting to the fork bridge is 20 mm long.

Also available in black or black/chrome versions!

Wiring colors:
White – Low beam
Blue – High beam
Brown – Position light
Black – Ground
Green – Ground
