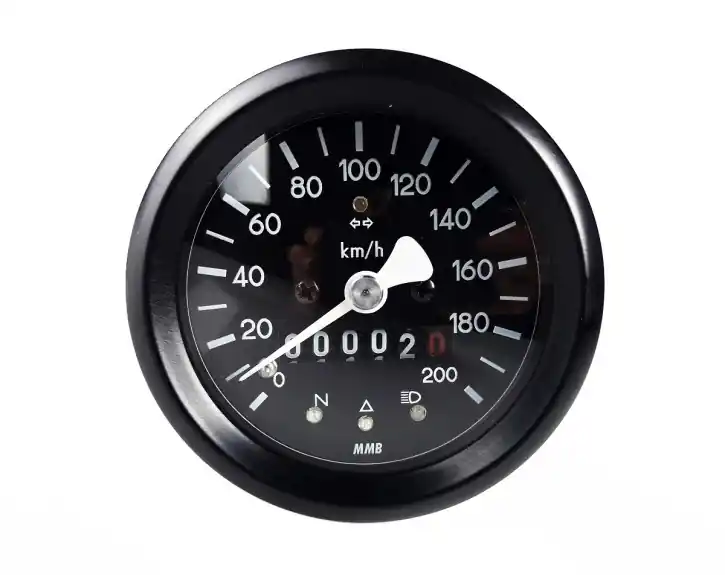

Mini speedometer incl. Indicator lights, for JAPANES and many others, 60mm, black, k-value = 1.4 Nur Für Kurze Zeit

High-quality processed mini speedometer as a minimalist one
Replacement for the original speedometer, Made in Germany. The speedometer
comes in a black mug with a black ring. The scale is enough
up to 200km / h, has a black face with white numbers
and is illuminated.

Technical specifications
– Instrument installation diameter (diameter): 60mm
– Outer diameter on the ring (outer diameter): 65mm
– Total length / lenght cup (without attachments / cables): 51mm
– Connection for the speedometer cable: M12 x 1mm
– Square: 2.65mm
– The speedometer works mechanically / eddy current principle
– K value of 1.4 and therefore suitable for the vast majority of motorcycles (exceptions: BMW and some vintage cars).
– Indicator lights (indicator, neutral, warning light, high beam)
– Illumination lamp: 12V / 1.2W
– Weight: approx. 60gr.

Cable assignment
– gray and black cable: lighting
– 2 yellow wires: indicators
– 2 green wires: neutral
– 2 blue / white cables: high beam
– 2 white / red cables: warning light
When connecting the lighting, please pay attention to the polarity!
When connecting the indicator lights, you do not have to pay attention to the polarity

scope of delivery
– 1 speedometer
– 1 assembly instruction

If you are not sure which gear ratio your motorcycle has,
then you can find out for yourself whether this instrument supports the
Will display speed correctly.

The K value can be determined as follows
– Measure the circumference of the wheel (using a tape measure or by rolling).
– Unscrew the shaft from the speedometer. Perform 10 revolutions with the wheel
and count the revolutions of the now visible square.
– Calculation: K = 10 x the number of revolutions of the square divided by the wheel circumference in cm.
– Round the result to one place after the decimal point
(There are actually only speedometers with the K values 0.7, 1.0 and 1.4).

Ideal as an inexpensive replacement for the incredibly expensive original instruments,
but also great for converting a cafe racer.
