Ellipsoidal HEADLIGHTS, high and low beam, LED parking light ring, e-approved Neue Kollektion

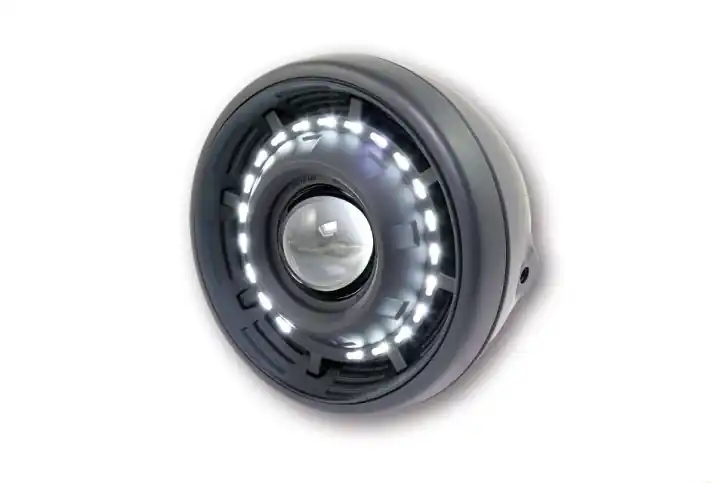

Matt black ellipsoid main headlight in a high-quality metal housing.
Innovative with electric shutter for high and low beam and a
LED position light ring. – For the best view and maximum safety!

Dimensions
– Case diameter: approx. 190mm
– Housing depth : approx. 160mm
– Attachment point to rear housing: approx. 90mm
– Side fixing holes : M8 thread

Technical specifications
– Colour: matt black
– Housing material: metal
– Shape: round
– Execution: main headlight
– Report: E-approved
– Light source: H3 bulb 12V 55W, PK 22S
– Functions: low beam, high beam, parking light
– Aperture: electronic

cable assignment
3-way plug for ellipsoid insert with shutter
– Green: ground (-)
– White: low beam (+)
– Blue: high beam (+)
LED ring for front position light
– Brown: Plus (+)
– Black: Ground (-)

scope of delivery
– 1x ellipsoid headlight
