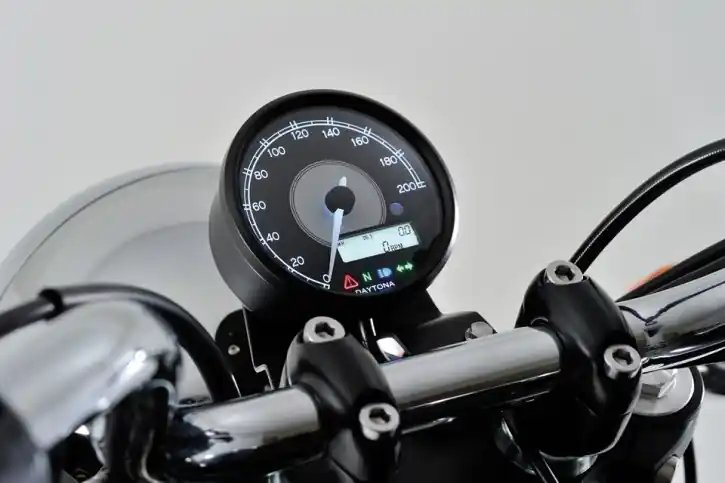

Electronic SPEEDOMETER and TACHOMETER, instrument cluster, DAYTONA VELONA, up to 200 km/h Zertifiziert

This instrument cluster from DAYTONA has both an analog
Speed display, as well as a digital speed display.

The digital signal of the motorcycle is used.
Signals from almost all common motorcycles can be converted.
If your motorcycle does not provide a digital signal, you can
order a speed pulse converter or an active speedometer sensor.
You can find these in our shop under the item numbers TA-IW and TA-SEN .
For motorcycles with electr. Sensor, can signal from the original pulse generator
be removed.

Overview
– Shape: round
– Case diameter: approx. 80mm
– Housing color: matt black
– Case material: stainless steel
– Backlight color: white
– Operation: 2 buttons on d. back
– Display with step monitor
– Adjustable pulse rate: 1P-1r / 1P-2r / 2P-1r / 30P-1r
– Direct Current: For 12V DC
– Report: E-approved

functions
Scale – analog
– Speed: 0 to 200 (km/h or mp/h)
LCD display – digital
– Speed range: 0 to 20,000 (rpm or rpm)
– Odometer: 0 to 99,999.9 (km or mile)
– Trip meter: 0 to 99,999.9 (km or mile)
– Voltmeter to check d. Battery Voltage: 0.0 to 18.0V
LEDs
– display d. optimal switching point
– Turn signals, high beam, neutral
– free LED for individually selectable function
Storage
– V max.
– Max RPM or rpm-Max.

scope of delivery
– 1 speedometer
– 1 holder
