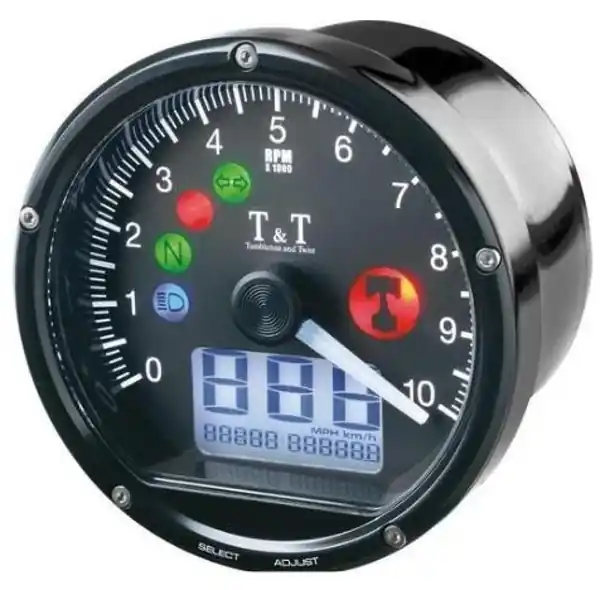

Digital speedometer – Tumbleton Twist Kostenloser Versand

Digital speedometer – Tumbleton & Twist

Classic multifunctional cockpit with the most important functions.
For two- and four-stroke motorcycles as well as quads and ATVs with
Suitable for 12 V DC vehicle electrical system and battery.

Technical data
– suitable for all ignition systems
– digital speed display up to 360 km/h (223 MPH)
– analogue speed display up to 10,000 rpm
– Shift warning programmable in steps of 100
– Total odometer up to 99,999 km (miles)
– Trip odometer up to 999 km (miles)
– Clock 24h
– Indicator lights for: neutral, high beam, indicator and warning light
– Wheel circumference adjustable from 300 – 2,500 mm in 1 mm increments
– Stainless steel
– Dimensions stainless steel case (Ø x D) approx. 79 x 55 mm
– Ø aluminium decorative ring approx. 86 mm
– Delivery includes mounting material, device holder, pulse receiver (Hall sensor)
with robust bracket and German installation and operating instructions.

Attention: If the vehicle originally has a charging indicator light,
This must not simply be shut down, as this can result in a failure of the
charging circuit (e.g. on BMW). Either close the charging control
separately with the original wattage or use the warning light
of the T&T instrument in conjunction with a resistor to restore the original
Wattage of the indicator light.

Note on connecting the tachometer to BMW motorcycles:
If you have display problems, try shielding the pulse cable for the
Speed signal by wrapping with a simple ground cable, in the
This usually leads to success.

The Hall sensor has three connection cables
– Red = Plus input 5 Volt
– White = Impulse
– Black = Minus

Tumbleton & Twist were originally watchmakers. In the middle of the last century
The British family business specialized in precision measuring instruments
for the industry. With this know-how from many decades, T&T has recently started
new ways and now also offers instruments for vehicles. Design and development
done in-house, the series production is carried out by one of the largest
Original equipment manufacturer in vehicle construction. This enables high-performance and precise products
with sophisticated looks at affordable prices .
