BÜGEL, frame bracket, loop Ø30mm / 245mm, for BMW K75 + K100 + universal Sonderaktion

BÜGEL, frame bracket, loop Ø30mm / 245mm, for BMW K75 + K100 + universal Sonderaktion

Ursprünglicher Preis war: 37,77 €Aktueller Preis ist: 18,89 €.

Sichere Zahlung Karte, PayPal und geschützter Checkout
Kostenloser Versand ab 48,00 € Schnelle Lieferung in ganz Deutschland
Schneller Support Hilfe bei Bestellungen und Versand
Artikelnummer: SK0002132-DE20260317-163550 Kategorie: Schlagwort:

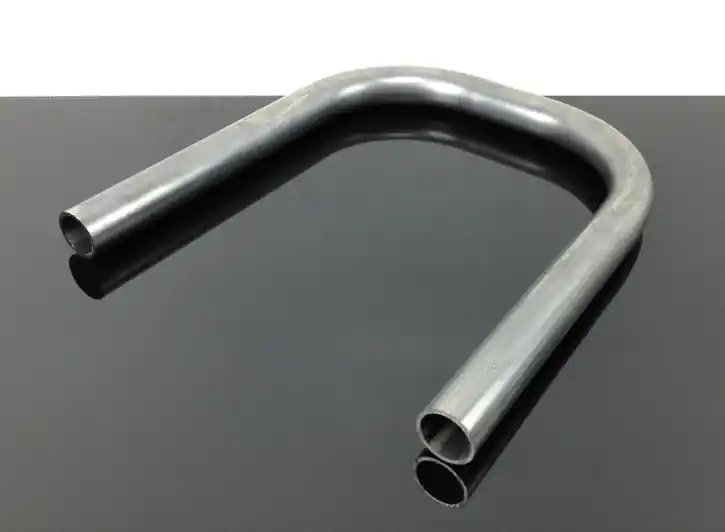

Universally usable rear loop, suitable for BMW K75 / K100 and many other motorcycles.
Suitable for converting the rear frame for many projects, e.g. Cafe Racer, Bratstyle, Scrambler etc.
Please compare the dimensions with your motorcycle before ordering.

Dimensions:
 – Total length: approx. 310 mm
– Distance between pipes (from pipe center to pipe center): approx. 245 mm
– Ø outside: 30 mm
– Ø inside: approx. 25 mm
– Material thickness: 2.5 mm
– Material: Welded, custom-rolled precision steel tube, very easy to form and weld

Flexing off the original frame and adding such a loop requires a TÜV approval.
We recommend organizing an inclined inspector for the entry before the conversion.

Manufacturer information on the material used:
EN 10305-3 (formerly DIN 2394-1 / -2) CR1 E195 S3:
CR1: Usually not heat-treated, but suitable for final annealing (BKM)
EN material E195 (formerly DIN St 34-2)
S3: cold rolled
Area of application: automotive industry, mechanical and plant engineering
Rm (N / mm): 374
Rp (N / mm): 358
A%: 39.5
Base: 5.65

GB: Frame LOOP Ø30mm / 245mm, for BME K75, K100 and universal
