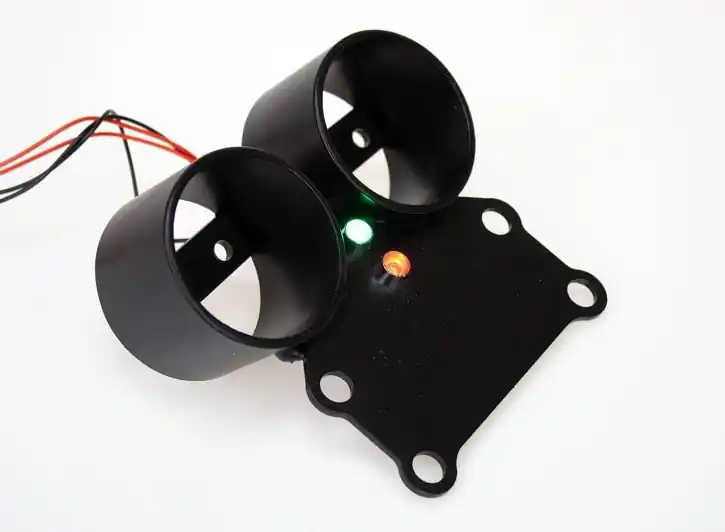

Begrenztes Angebot TACHO HOLDER for 2x Ø48mm instruments from Daytona, suitable for BMW R models

Shapely instrument holder for mounting on the handlebar mount suitable for BMW R models.
This holder was made of steel and powder-coated in black matt.
On BMW R models, it can be attached using the handlebar clamp screws. Possibly. the holder also fits others
Motorcycles, please compare the dimensions.
The holder also has two LED control lights, one in red, one in green, e.g. as an oil pressure control and neutral or
Indicator indicator light can be used, of course designed for 12V.

The holder was specially developed for Daytona instruments with a diameter of 48mm. Matching Daytona speedometers
and tachometer can be found in the Kickstartershop under item numbers 361-530, 361-531, 361-532, 361-533.
You could also mount other Ø48mm instruments if you slightly modified the holder.

Dimensions:
– Distance between the fastening screws: 80mm / 32mm
– Distance tachometer mounting: 34mm
– Overall width: approx. 120mm
– Depth of the speedometer cups inside: 38mm
– Ø inside the speedometer cup: 49mm
– Material thickness: 2mm
