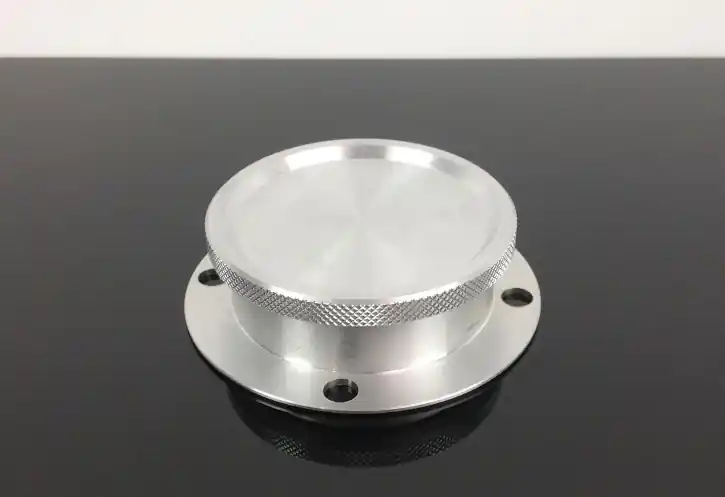

Begrenztes Angebot Racing-TANK COVER-Set aluminum super light

Absolutely high quality manufactured fuel cap incl. Flange made of aluminum to screw on.

Universally usable connection with cover for screwing on eg as fuel or
Oil tank cap. Super light, weighs cpl. only about 80 grams.
The lid is not vented, ie for normal motorcycle tanks you should have an extra
Install vent, otherwise a negative pressure will occur.

For mounting on plastic, steel or aluminum tanks with corresponding plane surface.

Please adjust the dimensions BEFORE ordering!

Dimensions
– Nozzle Ø outside: approx. 53mm
– Nozzle Ø inside: approx. 43.5mm
– Neck height: 13mm
– Lid Ø: 60mm
– Lid Ø thread: 44,9mm
– lid height: about 17.5mm
– height compl. (screwed together): approx. 19mm
– Distance of screw holes on the flange: 63mm
– Flange Ø outer: approx. 72mm
(Please note that the flange ring has a flat bearing surface
needed in this size!)

delivery
– Tank cap
– O-ring
– flange
